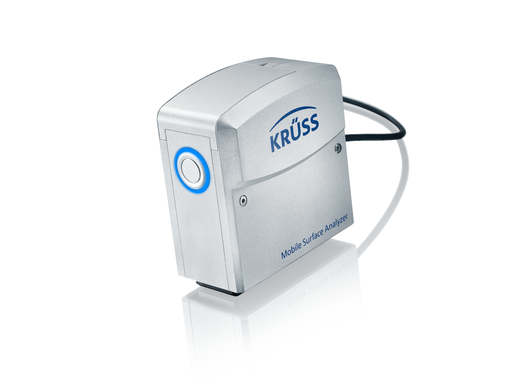

Mobile Surface Analyzer
Product comparison
Measurement specifications
Software
Software type
ADVANCE
Software languages
Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish
Software modules
Contact angle (recommended)
Surface free energy of solids (recommended)
Adhesion Analysis (optional)
Remote Control API (optional)
Sessile drop
Results
contact angle
Range
0 to 180° (software-based)
Resolution
0.01° (software-based)
Accuracy
0.8° (instrument-based)
Models
conic section
polynomial
circle
Young-Laplace
height-width
Types
static
Surface free energy of solids
Results
surface free energy
polar & disperse part
Models
equation of state
Zisman
Fowkes
Wu
Owens-Wendt-Rabel-Kaelble
Constrained Sessile Drop
Results
surface tension
Range
0.01 to 2000 mN/m (software-based)
Resolution
0.01 mN/m (software-based)
Models
Young-Laplace
General specifications
Sample dimensions
Maximum sample space
∞ × ∞ × ∞ (W × D × H)
Instrument dimensions
Footprint
84 mm × 32 mm (W × D)
Height
112 mm
Weight (without accessories)
0.85 kg
Environment
Operating temperature
10 °C to 40 °C
Humidity
without condensation
Interfaces
PC
USB 3.0
Housing and peripherals
Compartment
aluminum
Power supply
Voltage
5 V (powered via USB)
Power consumption
4.5 W
Product group specifications
Camera system (standard)
Connection
USB 3.0
Performance
25 fps at 1000 × 700 px
Optics (standard)
Focus
fixed focus
Zoom
fixed focal length
View angle
2°
Field of view
2 × 4.7 mm × 3.3 mm
Resolution of optics
5 μm
Illumination
Types
high power LED
Wave length, dominant
468 nm
Field of light
5 mm × 23 mm (D × H)
Liquid Needle pressure dosing system
Included in setup
yes
Types
double
Control
software-controlled
Cartridge, volume
disposable (1 mL)
Resolution
0.1 μL
Speed
fixed (fast jet)
